Commit e4160454 authored by Marcel Stör's avatar Marcel Stör
Browse files

Add missing test board render

parent b1af3fe0
......@@ -2,8 +2,8 @@ Hardware Test Harness
=====================
There is an implementation of the hardware testing design which is a small 4in x 4in board with positions for
two Wemos D! Mini ESP8266 boards, a breadboard area and a number of positions for peripherals. The schematics
are in [schematic](Test-harness-schematic-v1.pdf) and a rendering of the board is ![Board Render](Test-Harness-Render-V1.png).

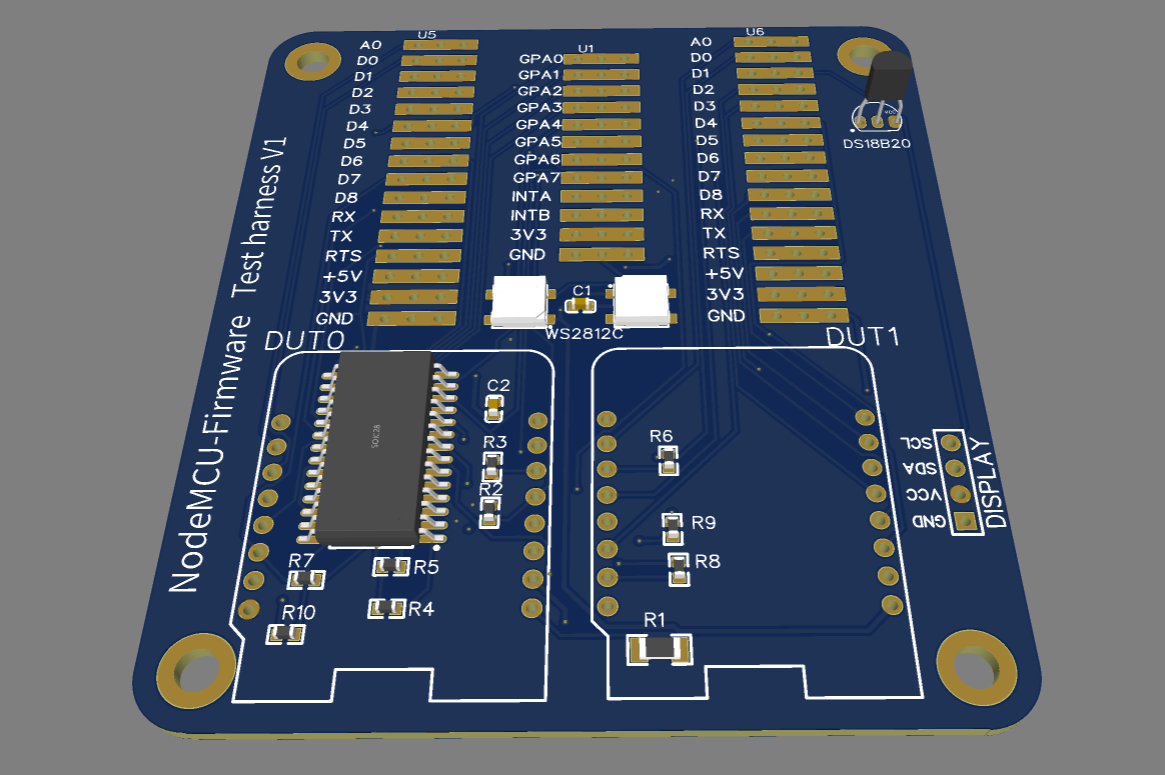

two Wemos D! Mini ESP8266 boards, a breadboard area and a number of positions for peripherals. A rendering of the board is below and the [schematics](Test-harness-schematic-v1.pdf)
are available as well: ![Board Render](Test-Harness-Render-V1.png).
The test harness runs from a dedicated host computer, which is expected
......
